€292.10

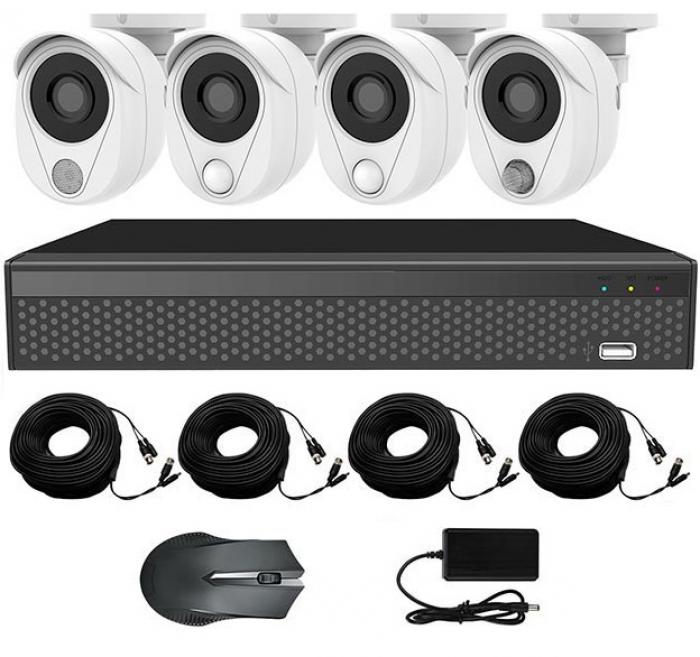

XVR SMART - KIT LONGSE CS500

  • Κωδικός Προϊόντος:DAT-CS500
  • Κατασκευαστής:Longse
  • Διαθεσιμότητα:1 έως 3 ημέρες

Νέο επαναστατικό SMART XVR - KIT  από την LONGSE  με την μοναδική τεχνολογία



Νέο επαναστατικό SMART XVR - KIT  από την LONGSE  με την μοναδική τεχνολογία που ενσωματώνει πάνω στις κάμερες 3 διαφορετικούς  σένσορες, 2 κάμερες με ανιχνευτή κίνησης (PIR) 1 κάμερα με ανιχνευτή αεριών (Gas Detector) και 1 κάμερα με ανιχνευτή θορύβου (Sound Alarm).


Τεχνικά Χαρακτηριστικά:
ΔΕΝ ΠΕΡΙΛΑΜΒΑΝΕΙ ΣΚΛΗΡΟ ΔΙΣΚΟ

4CH H.265 5IN1 XVR 8MP
- Support AHD/CVI/TVI/IP/Analog Camera Input
- Up to HD 8MP and IP 8MP Resolution Recording
- Support HD Output, VGA and CVBS Video Output
- Support Max. 4CH HD or 16CH IP Camera Input
- Support 1 SATA up to 8TB Capacity

Τεχνικά Χαρακτηριστικά:
NVR: 1x CS-NVR3604DEW (Recorder)
Camera: 2 x CS-EP2W (With PIR Detector), 1 x CS-EG2W (With Gas Detector), 1 x CS-ES2W (With Sound Alarm)
WIFI Range: No Obstacles 300m Max
Mouse: 1xUSB 2.0 Mouse
Adaptor: 1xDC 12V 2A for WIFI NVR, 4xDC 12V 0.5A for WIFI IP Camera
Camera Model: CS-EP2W, CS-EG2W, CS-ES2W
Image Sensor: 1/3" SONY Low Illumination  CMOS Sensor
Resolution: 5MP 1080P
Effective Pixels1: 920(H)x1080(V)
Compression: H.264/H.264+/H.265/H.265+/JPEG/AVI/MJPEG
TV System: PAL/NTSC
Electronic Shutter Time: Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec
S/N Ratio:  52dB
Scanning System: Progressive
Video Output: Network
Reset Button: Optional
Focus Length: 3.6mm
Focus Control: Fixed
Lens Type: Fixed
Pixels: 3M Pixels
Infrared LED: 42µx2PCS Optional
Infrared Distance: 30M
IR Status: Under 10 Lux by CDS
IR Power On: CDS Auto Control
Day/Night: YES
OSD Menu Language: YES
White Balance: Auto/Manual
Gain Control: Auto
Noise Reduction: 3DNR
Picture Adjustment: YES
DWDR: YES
UTC: YES
Smart Alarm: PIR Detecto(CS-EP2), Gas Detector(CS-EG2), Sound Alarm(With CS-ES2)
Housing: Plastic
IR Cut Filter: YES
Operation Temperature: -10C ~ +50C RH95% Max
Storage Temperature: -20C ~ +60C RH95% Max
Power Source: DC12V±10%, 500mA
Model: CS-XVRDA2104D
Main Processor: HI3521D
Operating System: Embedded LINUX
Input4CH (2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, etc)
Output: 1 VGA, 1 HD
Input/Output: 4Channel, RCA /1 Channel, RCA
Motion Detection: 4 Channel(max 16 Channel in pure network mode)
Trigger Events: Recording, Alarm, Email, Screen tips, Buzzer
Email Alarm: Send Image to The Designated E-mail
Interface: RS485
Protocol: Pelco-D, Pelco-P
Baud Rate: 110~921600
Address: 0~255
VGA Resolution: 1920 x 1080P /60Hz, 1280 x 1024 /60Hz, 1280 x 720 /60Hz,1024 x 768 /60Hz
HD Resolution: 3840x2160/30Hz, 2560x1440/30Hz, 1920 x 1080P /60Hz,  1280 x 1024 /60Hz, 1280 x 720 /60Hz,1024 x 768 /60Hz
Display Split: 16 Channel/9 Channel/8 Channel/4 Channel / 1Channel
Privacy Masking: 3 Rectangular Zones (Each camera)
OSD: Camera title, Time, Video loss, Alarm, Motion detection, Recording
Video Compression: H.265/H.264+/H.264
Audio Compression: G711u
Resolution: 5MP(2592x1944),4MP(2560x1440),3MP(2048x1536),1080P(1920x1080),720P(1280x720),960H(P:960x576/N:960x480)
Video Quality: worst/worse/ordinary/well/best
Record Rate: Analog:  PAL:5MP(2592x1944 4x12fps), 4MP(2560x1440 4x15fps),3MP(2048x1536 4x18fps);1080P(1920x1080 4x25fps),720P(1280x720 4x25fps), 960H(960x576 4x25fps) NTSC: PAL:5MP(2592x1944 4x12fps), 4MP(2560x1440 4x15fps),3MP(2048x1536 4x18fps),1080P(1920x1080 4x30fps),720P(1280x720 4x30fps), 960H(960x480 4x30fps)
Pure IP(H.265): PAL :4k@ 8x25fps, 5MP@ 12x25fps,4MP@ 16x25fps, 3MP@ 16x25fps, 1080P@ 16x25fps, 960P@ 16x25fps, 720P@ 16x25fps, D1@ 16x25fps NTSC:4k@ 8x30fps, 5MP@ 12x30fps,4MP@ 16x30fps, 3MP@ 16x30fps, 1080P@ 16x30fps, 960P@ 16x30fps, 720P@ 16x30fps, D1@ 16x30fps
Record Mode: Manual\Timer\Motion Detection\Alarm
Decode Capability: 4CH 1080P@ 30fps
Sync Playback: Pure Analog: 4CH 5M@ 12fps, 4CH 4M@ 15fps, 4CH 3M@ 18fps, 4CH 1080p@ 30fps Mix Mode:  4CH 1080P@ 30fps, 3CH 3MP@ 18fps, 2CH 5M@ 12fps, ,1CH 5MP @30fps, 1CH 4K @30fps Pure IPC:  1CH 4K @30fps, 2CH 5MP @30fps, 3CH 4MP @30fps, 4CH 3M @30fps, 4CH 1080P @30fps, 4CH 960P @30fps, 4CH 720P @30fps.
Remote Playback: 4 Channel/1 Channel
Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection
Playback Functions: Play, Pause, Stop, Fast play, Rewind
Smart Phone Playback: 4 Channel
Backup Mode: USB Device/Network
Interface: 1 RJ45 10M/100 Adaptive Ethernet Interface
Network Functions: TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, RTSP, RTCP
DDNS: Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES
Web Browser: IE8-11, Google Chrome (IE Tab), Firefox (IE Tab)
CMS Software: Support Windows 7/ Windows 8/Windows 10
Extra Stream: CIF(1~30fps)
Smart Phone: iPhone, ipad, Android, Android pad.
Interface Type: 1 SATA Interface
Capacity: 2.5"/3.5" SATA, Up to 6TB
Language: Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa
German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, korean, Dutch, Greek
UTC Control: YES
USB Interface: 2 USB 2.0 Interfaces
Power consumption: DC 12V  ?6W (Without Hard Disk)
Working Environment: -10~55C/10~90%
Interface: 1 RJ45 10M/100M Adaptive Ethernet Interface
Incoming Bandwidth: 28MB
Network Functions: TCP/CP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, RTSP, RTCP, p2p
Onvif Version: Support Onvif 2.4
Web Browser: IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53)
CMS Software: Support Windows7/Windows8/Windows 10
Cloud Support(P2P): Yes
Storage Interface Type: 1 SATA Hard Disk Interface (2.5"/3.5" SATA)
Capacity: Up to 8TB capacity
Power Supply: DC12V/2A
Εγγύηση 2 έτη
